Paragon Diving Tower Paraflyte, Ladder-at-Rear, Superflyte 3M Flanged Pedestal

Item Number: HH1201610

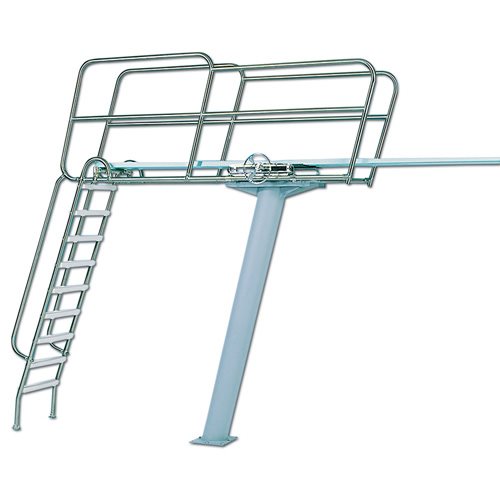

The Paragon Aquatics Paraflyte Ladder-at-Rear is our best selling, general purpose model, suitable for competition and larger commercial or institutional pools. May be installed indoors or outdoors. Available in One Meter or Three Meter height. Includes rails, geared adjustable fulcrum and rear swivel. Optional anchors available.

Paragon Paraflyte Diving Towers are available in three different grades. The variation among the grades applies only to materials. The three grades are: Ultraflyte, Superflyte and Topflyte.

  • Ultraflyte is the top grade and all tube is 1.90" O.D. × 0.145" wall T304 stainless steel.
  • Superflyte is a general-purpose middle grade and all tube is T304 stainless 1.90" O.D. with a wall thickness range of 0.145", 0.109" or 0.65". The wall thickness of each member is dependent on structural requirements.
  • Topflyte is the economy grade and all tube (with the exception of the flexural members) is T304 stainless steel tube 1.90" O.D. × 0.145" wall.

Each tower is designed for diving boards 14 or 16 feet long and is furnished complete with pedestal, front anchor, rear anchors, fulcrum and railings. These can be varied to suit specific job requirements or specifications.

Individual specification sheets are available for all models on request.

This diving equipment should be used only on pools that conform to state or local codes, FINA, NCAA, NFSHSA and US Diving standards. These specify minimum dimensions for depth of water, length and shape of diving hopper, location of diving boards with respect to side and vertical clearances, and any other requirements.

Diving Board Sold Separately.

When ordering, we will contact you to discuss other information needed prior to preparing your order.

This item ships by Truck. Additional charges will apply if the following services are required:
  • Shipment to a residential or military base address (charge varies, approximately $40 to $100)
  • Shipment requiring inside delivery or a lift gate (charge varies, approximately $75 to $125)
  • Expedited Service
Please specify during the checkout process in the Comment/Note section if you will need any additional services (such as those listed above) upon delivery. You will be contacted for approval prior to processing your order if any additional charges apply.
$22,535.94 /EA
    • EA
  • Availability: Contact us for availability information

This item may be eligible for return.

Non-stocked Pentair products are only eligible for return at the discretion of the manufacturer within 60 days of delivery. Authorized returns are subject to a minimum 15% handling charge.

Contact us for more information regarding your specific return request.

Proposition 65 Warning for California Customers

Warning: Cancer and Reproductive Harm -

You may also be interested in

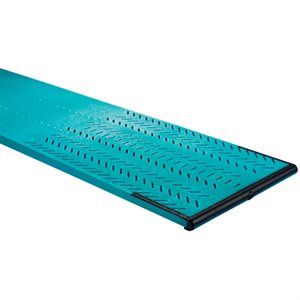

Duraflex Aluminum Diving Board 16'
  • $6,129.66 /EA

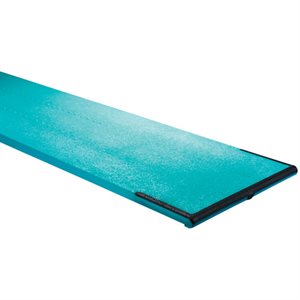

Maxiflex Model B Aluminum Diving Board 16'
