Aquatic Access IGAT-180 Above Deck Lift

CLICK HERE for more information on ADA Compliance and what it means to your facility.

• Meets or exceeds current recommendations and future requirements of the ADA
• Automatic 180° Clockwise Seat Turn
• Elevated Deck Clearance to allow for automatic pool covers or pool/spa combinations
• Powered by Water Pressure – lifts up to 350 lbs. at 55 PSI while lifting or approx. 60 PSI static faucet pressure
• Vertical Seat Travel – 42"
• Installs in Deck Socket (Socket Cover included)
• Portable (Lift Out and Put Away)
• Flip-Up Footrest Included
• Can Be Padlocked in Seat-Up Position
• Allows Independent Operation

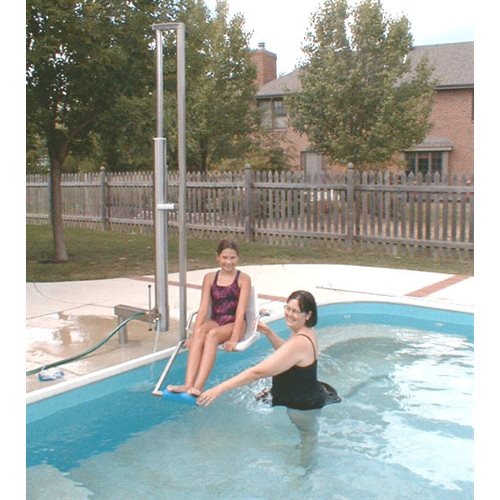

Previously available as a custom design, the Model IGAT-180AD was designed to accomodate pools with automatic covers and some pool/spa combinations. This lift complies with the current recommendations and pending requirements of the Americans with Disabilities Act (ADA). It is user-operable, and its seat height is easily adjustable to accommodate various wheelchair heights. The 180° clockwise turn allows the greatest access from the deck for the user and any assistants. Side-to-side transfers are easy, the footrest flips up and the mounting arm is under the seat. This allows for unobstructed transfer. The seat rotates forward when entering the pool, and backward when exiting the water. The standard seat includes a stationary inside arm, a flip-up outer arm and a seat belt.

Aquatic Access Model Number: IGAT-180AD
