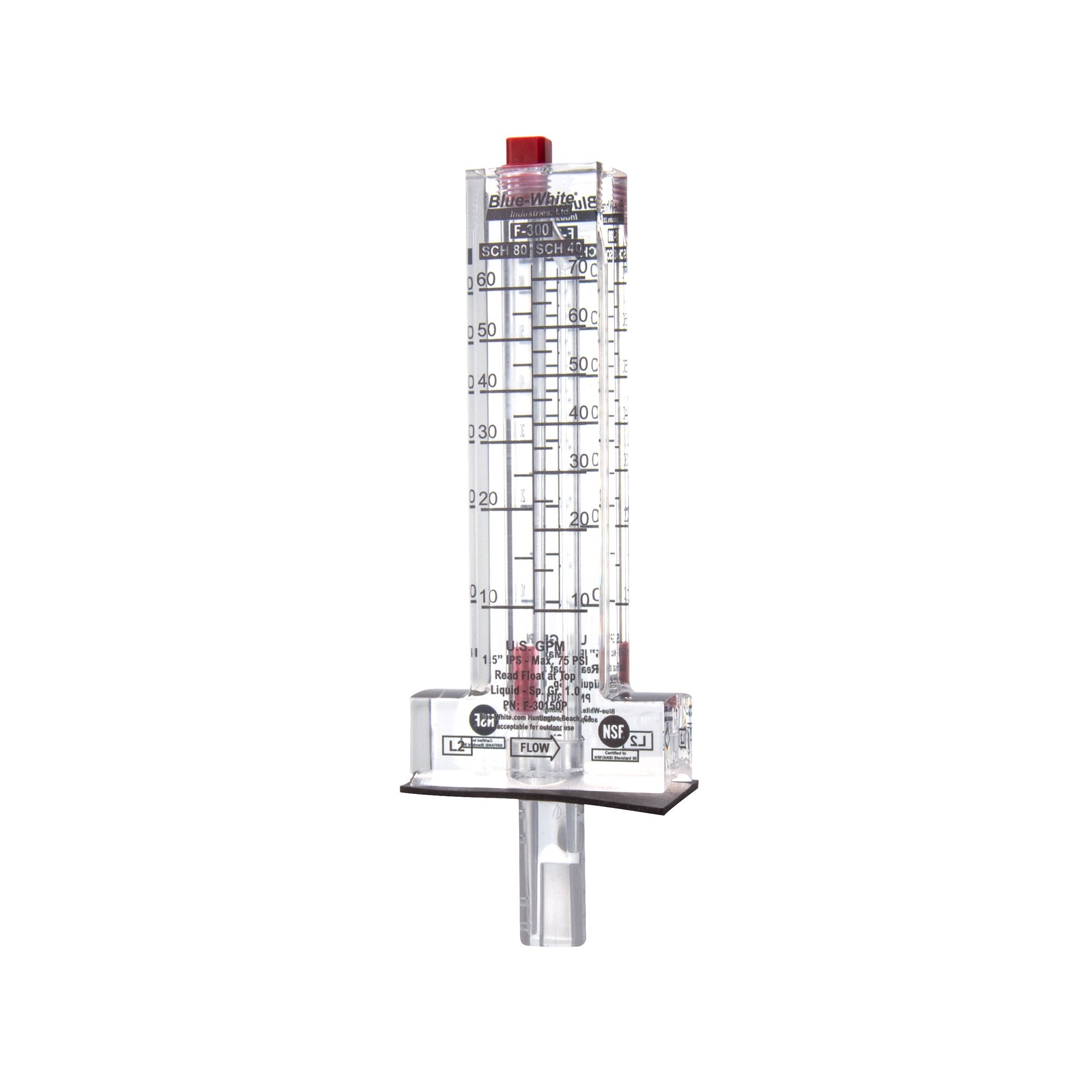

Blue-White Flow Meter For 1.5" Pipe

F-300 series flow meters utilize a pitot tube pick up and a hard edged float design to provide a convenient and economic means of measuring water flow in a closed pipe system. The F-300 impact tube flow meter features a tough, one-piece machined acrylic meter body, corrosion resistant internal parts, and permanent screen-printed scale. You get all the strength and long service life required in most commercial and industrial applications.

Each F-300 series is individually packaged with gasket seal and mounting clamps.

Top Mount, for 1.5" horizontal pipe. Side Mount (for 1.5" vertical pipe) available by special order. Contact us for availability and pricing.

Flow Range:

• PVC Schedule 40: 10 - 70 GPM
• PVC Schedule 80: 10 - 60 GPM

Blue-White item number: F-30150P
