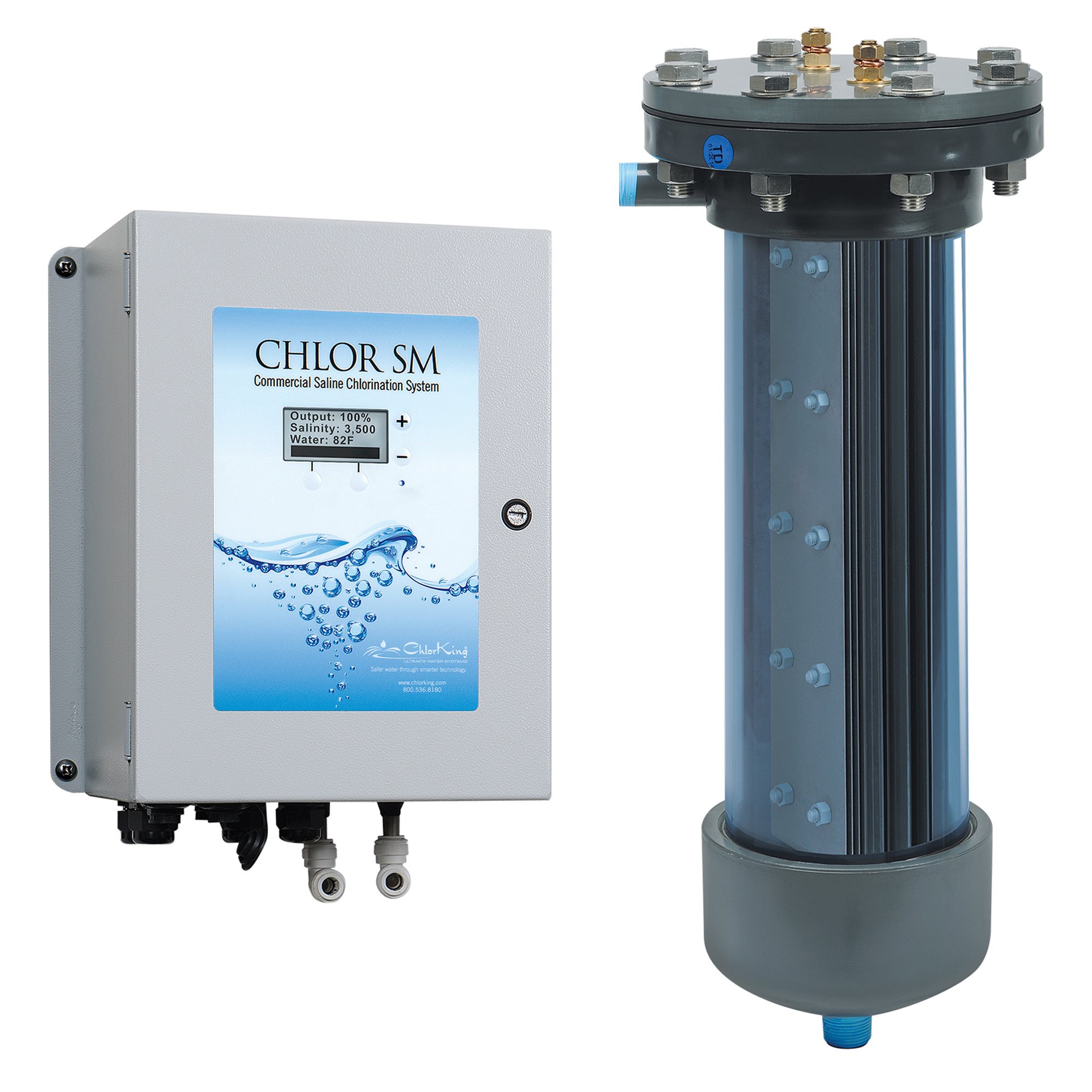

ChlorKing Chlor SM Salt Generator
Double-tap and hold to zoom.
Mouse over the image to zoom.

ChlorKing Chlor SM Salt Generator

Item Number: IICKSAL06

Produce liquid chlorine from salt. These low maintenance models utilize reverse polarity to clean the plates every 3 hours. The NexGen unit is a stand alone, on-site chlorine generator capable of producing pH neutral chlorine for use in your pool. Reduces acid consumption by 30 - 50% versus a bleach fed pool. These commercial quality generators use swimming pool water to feed the generator and distribute chlorine to the pool as needed. Uses venturi feed system for supply of chlorine to the pool and can be used with any ORP or PPM swimming pool controller. This system does not put salt into the swimming pool and will not raise TDS levels, like other chlorine generators. Eliminates the need to store large amounts of chlorine onsite.

Touchscreen display with built in safety sensors for air, water, pressure, and tank level. Max amperage of 24 amps requires installation of 40 amp breaker. Skid mounted for easy installation. Requires plumbing vent line for Hydrogen dissipation. Units available that produce from 10 PPD (equivalent to 10 gallons of 12% pool bleach) in 24 hours to 80 PPD (equivalent to 80 gallons of 12% pool bleach) in 24 hours. Can feed up to six bodies of water from one system with venturis. Multiple units can be use for larger facilities. Available to be used as primary chlorine supply with traditional liquid chlorine or use with calcium hypochlorite feeders as back up. Excellent product to use when you have limited delivery or storage options for chemical supply. 208-240v, single phase, 60 Hz. ETL/NSF Listed. Reverse polarity systems listed.

Model Chlorine Production Dimensions
(L×W×H)
Weight
10SM-R 12 lbs/day 48" × 28" × 68" 950 lbs
20-R 24 lbs/day 48" × 28" × 68" 950 lbs
40-R 48 lbs/day 48" × 28" × 68" 1000 lbs
50SM-R 60 lbs/day 48" × 28" × 68" 1000 lbs
60-R 72 lbs/day 81" × 62" × 39" 1250 lbs
80-R 96 lbs/day 81" × 62" × 39" 1250 lbs
100SM-R 120 lbs/day 81" × 62" × 39" 1250 lbs
