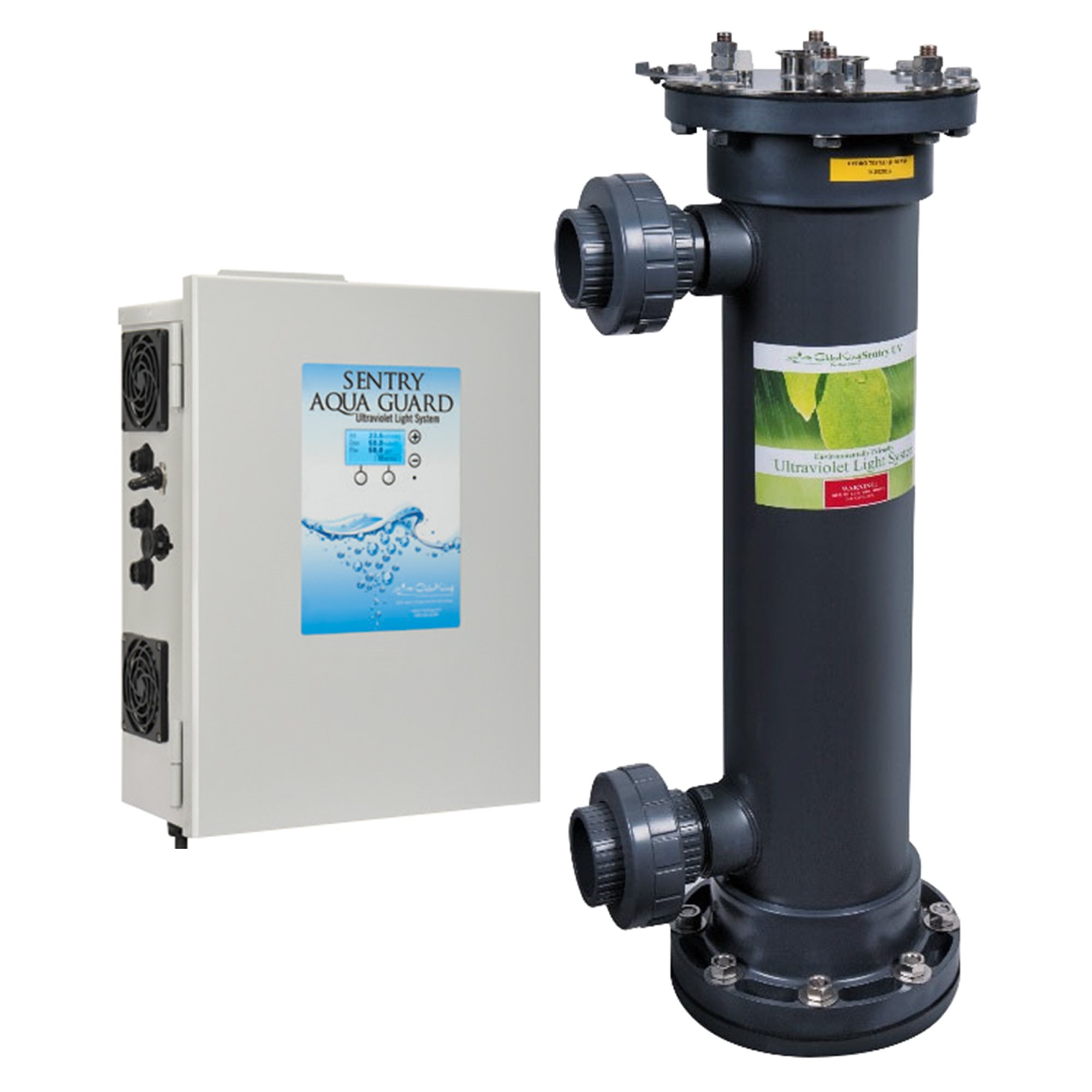

ChlorKing Sentry Aqua Guard Ultraviolet Disinfection System

Item Number: IICKUVD06

ChlorKing® Sentry Aqua Guard UV systems are leading the way to better, safer water. Their unique, forward-thinking design employs high output amalgam technology for better chloramine control and inactivation of chlorine resistant bacteria. Sentry Aqua Guard systems are designed for commercial pools and spas, and they pay for themselves through lower cost of operation and a longer lasting system. Your facility strives to promote a healthy environment for your member and guests. With a ChlorKing® Sentry ultraviolet light system your pool can now become an attraction instead of a headache. ChlorKing Sentry ultraviolet light systems add a second level of protection for your patrons against pathogens in the pool water. They also drastically reduce the level of chloramines which can often overwhelm indoor pool areas.

ChlorKing Sentry UV offers the simplest operation available using the KIS (Keep it simple) philosophy. An LED control panel allows the operator to visually inspect operation and will warn of any malfunction or situation that needs attention. ChlorKing Sentry UV systems can be installed vertically or horizontally and will fit into most existing pump rooms.

ChlorKing Sentry UV systems feature a patent pending quick disconnect sleeve assembly for the easiest quartz sleeve removal in the industry. This unique design allows the operator to remove the sleeves in less than 1 minute when changing, cleaning or replacing is required. Why struggle with expensive troublesome automated wipers on competitive systems?

  • Amalgam technology
  • Improved water and air quality
  • Reduction in chlorine consumption, waterborn bacteria, and bleached suits
  • 13,000 hour EOL lamp life
  • Patent pending quick disconnects
  • 316L stainless steel chambers
  • Sch. 80 chambers for small pools & hot tubs
  • 54nm wave length for sterilization/185nm wave length for oxidation
  • NSF Listed
Model Chamber Material # of Lamps Voltage Connection Size Flow Rate (GPM)
SAG-120APVC Sch. 80 PVC 1 120V 2" 75
SAG-240APVC Sch. 80 PVC 2 120V 3" 150
SAG-120A 316L S/S 1 120V 2" 50
SAG-240A 316L S/S 2 120V 3" 120
SAG-480A 316L S/S 4 120V 4" 350
SAG-720A 316L S/S 6 120V 6" 620
SAG-960A 316L S/S 8 120V 6" or 8" 770
SAG-1200A 316L S/S 10 120V 8" or 10" 1140
