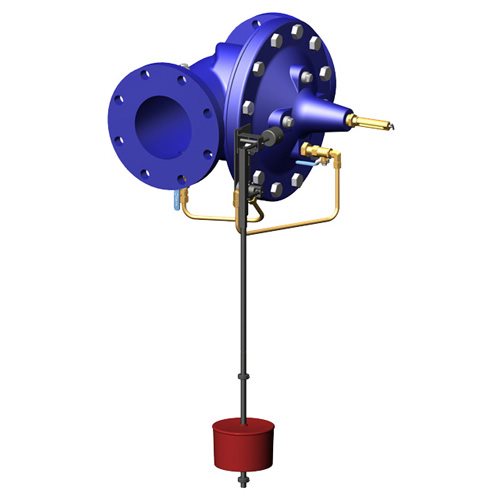

Cla-Val 124-01 Float Valve, 1"

The Cla-Val Model 124-01/624-01 Float Valve is a non-modulating valve that accurately controls the water level in tanks. This valve is designed to open fully when the water level reaches a pre-set low point and close drip-tight when the level reaches a preset high point.

This is a hydraulically operated, diaphragm valve with the pilot control and float mechanism mounted on the cover of the main valve. The float positions the pilot control to close the valve when the float contacts the upper stop. The high and low liquid levels are adjusted by positioning the stop collars on the float rod. The difference between high and low levels can be adjusted to as little as one inch, or to as much as eighteen inches.

Level settings can be as much as eleven and one half feet below the valve. The float mechanism may be located remotely from the main valve.

Standard model includes two feet of PVC rod and a plastic float ball. Also available with epoxy coating, flanged connections, stainless steel rod and/or stainless steel float ball with pricing on request.
