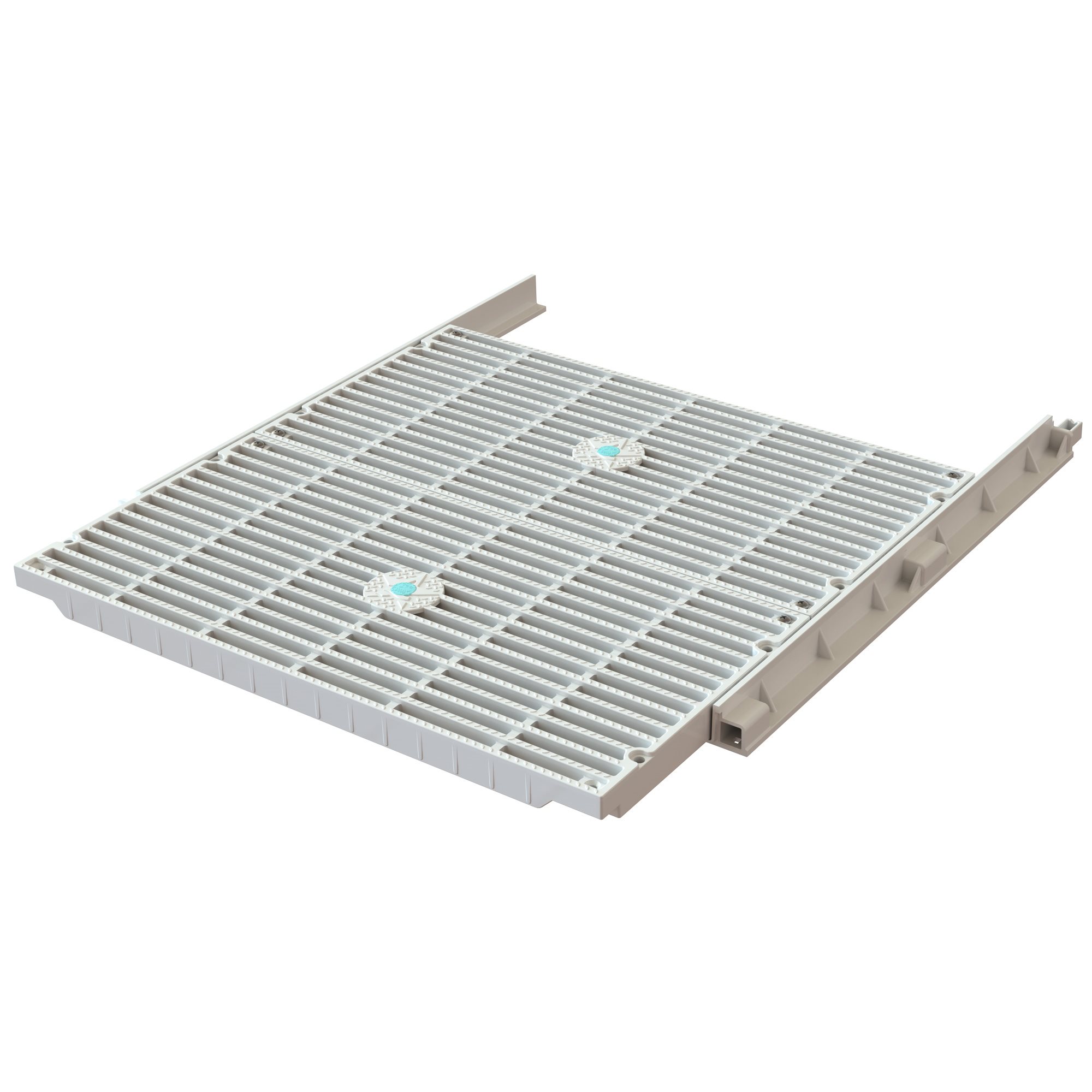

AquaStar MAHC-I Series Anti-Entrapment Suction Outlet Cover and Frame Expansion Kit, 2 - 18" x 9", White

The MAHC-I Series are VGB Unblockable drains for replacement and new construction. The MACH-I Series Click-It™ modular grates and supports are a direct replacement for existing 18" × 36", 54", and 72" drain grates. The series consists of a base kit 18" wide × 36" long that is expandable in 9" increments to accommodate even larger sizes.

AquaStar's MAHC-I Series R1836xxx 24" drain cover features:

• Designed for new construction and remodel applications
• 18" x 36"
• Floor GPM*: 2275
• Wall GPM*: 2275
• Open Area: 358 sq. in.
• Manufactured from superior UV-resistant PVC polymer
• Trademarked VGB compliance button easily identifies VGB compliant cover from on deck and underwater
• Includes #316 Stainless steel screws with brass inserts
• Certified, Listed, and Labeled in conformance with APSP/ANSI/ICC-16 2017 and NSF/ANSI/CAN 50 standards.

*Minimum 6" sump floor and pipe opening depth.

• White – 1836101 (1836xxx)

The manufacturer recommends replacing the cover and screws within 10 years of installation.
