Eureka Commercial Hi-Rate Sand Filter

The Hi-Rate Filter concept employed in Eureka Manufacturing Company's HRL, HRL2C, and HRG Hi-Rate Permanent Media Filters has been refined and tested with thousands of systems successfully installed and operating throughout the world. This experience has tested the original premise of the design, making the Hi-Rate an effective, proven method of water filtration.

These filters are designed for and installed in large, commercial aquatic centers, public swimming pools, and commercial water parks.

Our Hi-Rate Permanent Media Filters are manufactured in sizes from 30 inches diameter up to 120 inches diameter. The filters are available in single and multi-vessel configurations, as well as with multiple cells inside a single vessel.

Our filters, in single or dual vessel configurations will service pools with total volumes ranging from 50,000 gallons up to 550,000 gallons. Flow ranges can be accommodated from 142 gpm up to 2,086 gpm. Larger pools or higher flow rates are also readily available.

Eureka Commercial Hi-Rate Permanent Media Filter Systems

Features:

• Tested and Certified by NSF International
• Flow rates of up to 20 gpm per sq. ft. of filter area

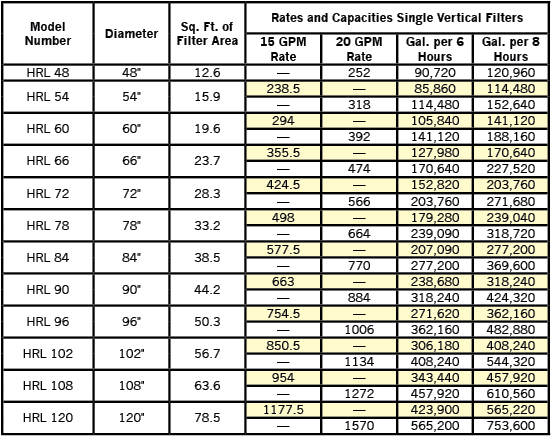

• Standard models filter from 26,640 gallons per six hours to 565,200 gallons per six hours
• Low maintenance, easy to operate
• High backwash rates without loss of media
• Automated Backwash Control available

Eureka Commercial Dual Cell Hi-Rate Sand Filters

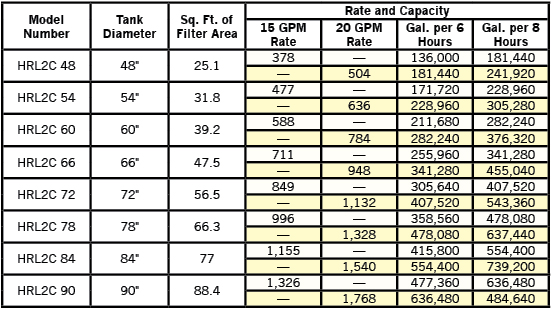

HRL Dual Cell Hi-Rate Sand Filters are single vessels that contain two separate permanent media filter cells inside. HRL Filters have high filter capacity, but take up relatively little square footage in an equipment room.

HRL Filters share all the same great features as the classic Swimquip Hi-Rate Filters, including ease of use, low maintenance requirements, and optional Automatic Backwash Control Systems.

Proven Water Filtration

• The HRL Hi-Rate Filter concept has been refined and tested with thousands of systems successfully installed and operating throughout the world.
• Simple, sturdy and effective, Eureka’s Hi-Rate Filters are an economical method of filtration for all swimming pool applications.

High Quality Products and Customer Service

Eureka Manufacturing Company is distinguished from all other producers of durable aquatics goods by its commitment to providing its customers excellent customer service.

Please call our sales engineers for information on multiple cell or multiple tank systems, to receive a brochure about these filters, or to compare our competitive prices.

Eureka/Swimquip Filter Parts

We stock a complete line of filter parts for Eureka and SwimQuip HRG and HRL series Hi-Rate Sand Filters and SwimQuip HB/F D.E. Filters

HRL/HRG Hi-Rate Permanent Media Filters

For decades, the HRG and HRL Series Hi-Rate Permanent Media Filters have been widely used throughout the world. Today, thousands of commercial aquatics facilities employ these easy to operate, reliable commercial water filters.

If you are faced with the failure of your commercial filtration system due to aging parts, contact our sales engineers for our complete selection of replacement components.

A complete catalog of parts for your older HRG or HRL system is available. Call 1-800-437-8072 for your free copy today!

HB/F Diatomaceous Earth Filters

The HB/F diatomaceous earth filter system is no longer in production. However, we do carry a number of replacement parts for these popular systems. To extend the useful life of your trusted equipment, call us at 1-800-437-8072 for specifications or to have a list of available parts faxed immediately to you!

Please contact our sales engineers for information on multiple cell or multiple tank systems, to receive a brochure about these filters, or to compare our competitive prices.
