Anti Wave Maximum 6" Racing Lanes, 14 ft. Extension
Press and move to zoom.
Mouse over image to zoom.

Anti Wave Maximum 6" Racing Lanes, 14 ft. Extension

Product Code: MP02856

The “Maximum” 6" Racing Lane is the lane used in the Sydney 2000 Summer Games. Using Hydrodynamic Propulsion technology, the “Maximum” forces the waves downward into the pool. The effect is dramatic wave-quelling performance.

Each lane comprises a number of discs (injection molded in durable polyethylene, with additives for maximum UV and chemical resistance) threaded onto a 2000# test strength 20-strand stainless steel cable. Interspersed between the discs, seated into the recesses provided, are ovoid blow-molded floats. One end of the cable is secured by means of copper sleeves to form a loop holding a stainless steel eyelet, into which is fitted a stainless steel S-hook. The opposing end of the lane is fitted with the unique Supertensioner™, a turnbuckle tensioning device.

The body, lock nut and cap of the Supertensioner are injection molded of a specially compounded polypropylene while the other components are stainless steel (internal threaded rod, hook, lock nut bushing) and naval bronze (molded body bushing). The cable is restrained by a stainless steel clamp assembly, which locates inside the cap. The lane is supplied fully assembled; there may need to be some slight adjustment of the Supertensioner location, for which a full set ofinstructions is included.

The ForeRunner carries a 3-year warranty. Standard lane features a 15' solid-color lead-in, followed by alternating colors every 3'. Variations are available. Call for information regarding custom lengths or configurations.

At least two colors should be used, with a distinctly different color pattern implemented 15 feet from each end of the pool (the Lead-In). Disc 1 Color and Disc 2 Color are the colors that will alternate between the Lead-Ins. FINA requires a backstroke turn marking of a contrasting color 15 meters from each end of the lane. You will be able to specify colors when you add the item to your cart.

Standard Colors (3 days):
Blue
White
Red
Green
Black
Yellow

Specialty Colors (7 days):
New Navy/
Dark Blue
Orange
Maroon
Gray
Purple
Teal
Silver
Light
Blue

Note: Colors are representative of the actual product color. Screen monitor settings and printer ink may cause variability.

Custom colors are available. Please contact us for details and pricing.

All Maximum racing lanes ship via truck.

Anti-Wave racing lanes are made to order. As such, they will require some lead time to ship. Lead time can vary from as little as one week to as much as 8 weeks or more. If you have date-sensitive requirements, please contact us to discuss available options.

Documents:


NOT ELIGIBLE FOR FREE FREIGHT!
This item is not eligible for our flat rate standard ground shipping program. If you order this item, you will be contacted with a shipping quote for this item. We will not process your order until you have approved the extra charge.

THIS ITEM SHIPS BY TRUCK!
This item ships by Truck. Additional charges will apply if the following services are required:
  • Shipment to a residential or military base address (charge varies, approximately $40 to $75)
  • Shipment requiring inside delivery or a lift gate (charge varies, approximately $75 to $125)
  • Expedited Service
Please specify during the checkout process in the Comment/Note section if you will need any additional services (such as those listed above) upon delivery. You will be contacted for approval prior to processing your order if any additional charges apply.
$163.50 /EA
    • EA

You may also be interested in

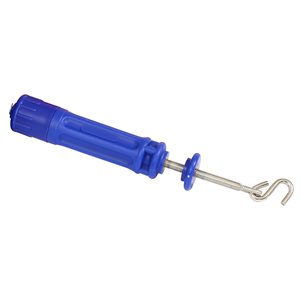

Supertensioner, Blue
