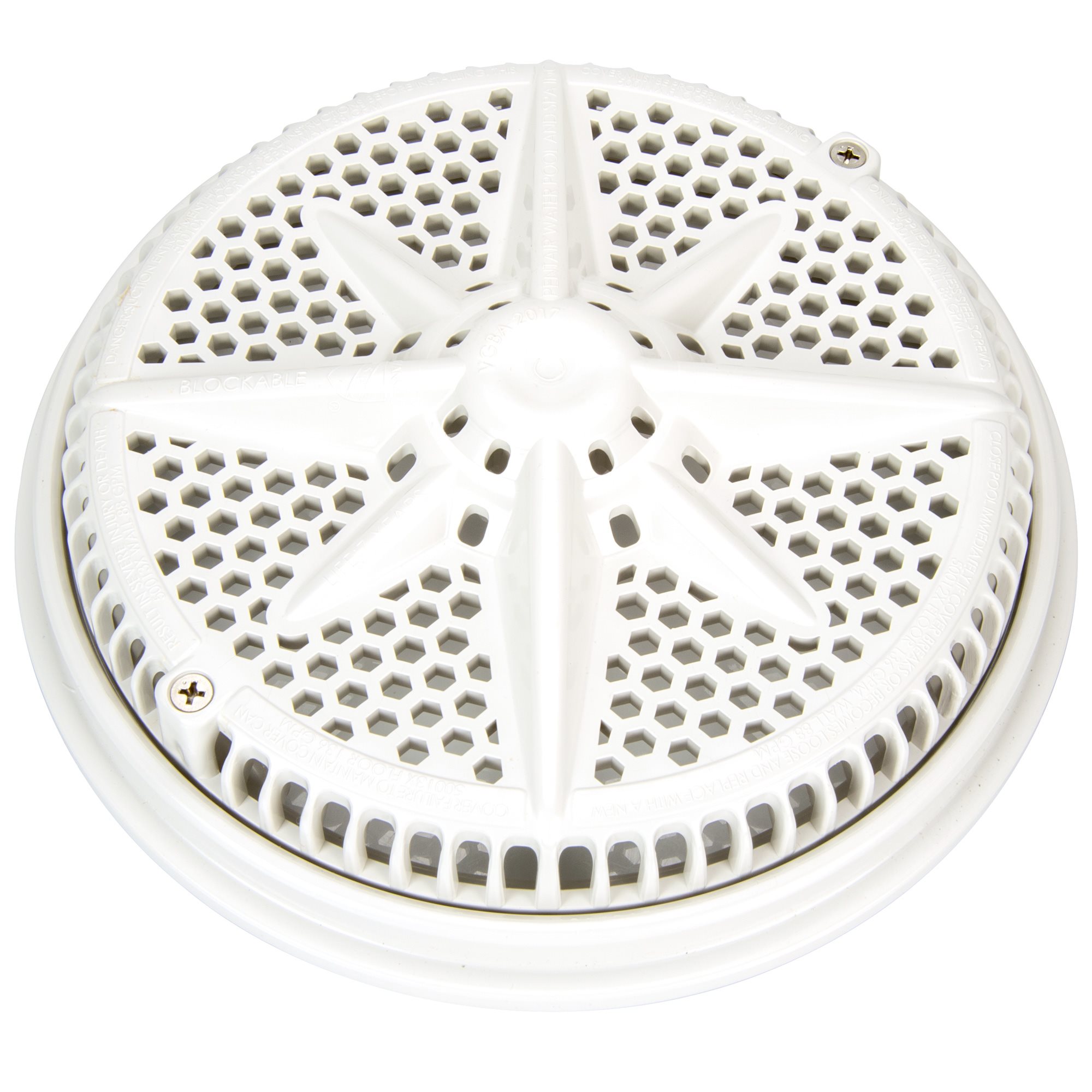

Pentair 500103 StarGuard 8" Round Cover with Short Ring (Single)

StarGuard Main Drains comply with provisions of the ANSI/ASME A112.19.8-2007 standard and the Virginia Graeme Baker Pool and Spa Safety Act. High quality StarGuard Main Drains are available in a variety of configurations to fit any residential in-ground pool or spa installation. StarGuard Main Drains have an industry-leading 15.35 square inches of open area for water flow. If you are in an area where water velocity through the grate is limited to 1.5 feet/second, the StarGuard covers allow flow rates up to 72 GPM. Replace after 7 years of installed life. Color: White. Other colors and sizes are available on request.

• Open Area (sq. in.): 15.35
• Floor GPM: 144
• Wall GPM: 112

Pentair item number(s): 500108 (w/ long ring) and 500103 (w/ short ring)
